3 Wheels High Pressure Washing Vehicle JIECHI Q1

Home Products Municipal cleaning equipments

3 Wheels High Pressure Washing Vehicle JIECHI Q1

3 Wheels High Pressure Washing Vehicle JIECHI Q1

The pure electric road sweeper is primarily designed for cleaning sidewalks, non-motorized vehicle lanes, motorized vehicle lanes, municipal parks and gardens, residential communities, and other roadways; it is capable of rapidly removing litter, fallen leaves, stones, sand, and airborne dust. This equipment integrates spraying, sweeping, and vacuuming functions into a single unit, delivering exceptional cleaning results and achieving extremely high operational efficiency.

  • Model :

    Q1
  • Voltage :

    48V/155Ah
  • Washer Pump Motor :

    3000W
  • Washer Width :

    >=4.5m
  • Pump Pressure :

    200kg/㎡
  • Performance :

    45000㎡/h
  • Traction Motor :

    2200W
  • Flow of Water Pump(max) :

    15L/min
  • Gradeability :

    25%
  • Water Tank :

    480L
  • Size :

    217*120*187cm
  • Weight :

    580kg

Maintaining pristine cleanliness in pedestrian zones, municipal gardens, and large commercial facilities requires an agile and environmentally friendly solution. The JIECHI Q1 3-Wheel High-Pressure Washing Vehicle is a versatile, pure-electric ride-on sweeper and washer designed for both sheltered outdoor sites and expansive community areas. Integrating a powerful 200kg/cm² high-pressure water pump with an efficient debris collection system, it seamlessly clears fallen leaves, sand, white garbage, and stubborn pavement stains in a single pass. With zero emissions, controlled dust output, and an ultra-compact turning radius, the Q1 empowers property managers and municipal teams to perform deep-cleaning operations safely and quietly, even during peak public hours.

Core Engineering & Operational Advantages

High-Efficiency Hydro-Jetting Power

Driven by a dedicated 3000W washer pump motor, the Q1 generates a massive 200kg/cm² pump pressure. This allows operators to blast away stubborn municipal grime, moss, and deeply embedded dirt across a sweeping washing width of over 4.5 meters.

Agile 3-Wheel Maneuverability

Designed for tight urban spaces, the 3-wheel chassis provides an ultra-compact 1800mm turning circle. Operators can confidently maneuver around columns, parked vehicles, and curbs in sheltered outdoor sites and narrow pedestrian lanes without frequent reversing.

Zero-Emission Electric Drive

Equipped with a high-capacity 48V/155Ah battery and a robust 2200W traction motor, the Q1 operates quietly with zero emissions. It supports 4-6 hours of continuous working time, making it ideal for noise-sensitive property communities and school campuses.

Steady Traction & Gradeability

Balanced weight distribution and stable drive response allow the vehicle to safely navigate inclines with a 25% maximum climbing degree. The 450L water tank is strategically positioned to maintain a low center of gravity even when fully loaded.

Versatile Cleaning Scenarios

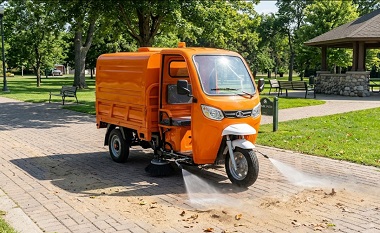

Q1 Washing Vehicle on municipal sidewalks

Municipal Sidewalks & Parks

The >=4.5m washer width and compact frame quickly clear sand, dust, and fallen leaves from pedestrian zones.

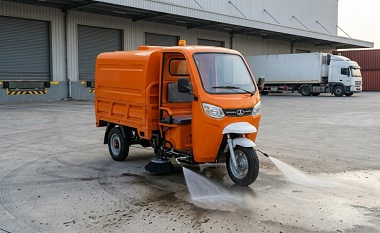

High pressure washer cleaning car parks

Car Parks & Loading Aprons

200kg/cm² high-pressure jets easily remove vehicle fluids, mud, and tire marks from concrete surfaces.

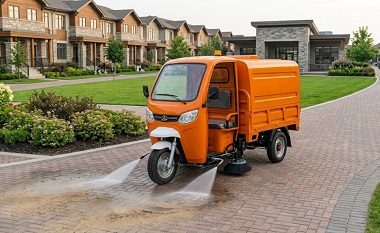

Electric washer vehicle in property communities

Property Communities

Pure electric operation allows facilities to maintain sanitation during open hours without noise or exhaust complaints.

Standard Accessories

Heavy-duty Squeegee Blade

Squeegee Blade

High Capacity Filter

Filter

Dual Brush Disc Set

Brush Disc Set

Industry Certifications & Compliance

CE Certification
ISO Certification
Compliance Standard
Manufacturing Standard

Technical Specifications

Voltage 48V/155Ah Maximum Flow of Water Pump 15L/min
Washer Width >=4.5m Water Tank 450L
Washer Pump Motor 3000W Maximum Climbing Degree 25%
Cleaning Performance 45000m²/h Working Speed 20km/h
Traction Motor 2200W Machine Size 217*120*187cm
Turning Circle 1800mm Machine Weight 580kg
Pump Pressure 200kg/cm² Working Time 4-6h

FAQ

How does the 3-wheel design improve cleaning efficiency?

The 3-wheel configuration gives the Q1 an incredibly tight turning circle of just 1800mm. This allows operators to easily navigate around pillars, racking, and tight curbs in sheltered outdoor sites or parks without needing to perform frequent, time-consuming corrections or reversing.

Can this vehicle be operated safely during regular business hours?

Yes. Because the Q1 is powered by a 48V pure electric system, it operates with zero exhaust emissions and significantly lower noise levels than diesel alternatives. The controlled dust output and precise water spraying make it perfectly safe to sweep and wash public areas during open hours.

What is the maintenance routine for the Q1 washing vehicle?

The Q1 features a sturdy frame and robust water pump assemblies designed for repeated daily cycles. We've ensured fast access to the hopper, filters, and brush wear points to keep maintenance windows short. Additionally, common consumables (like squeegee blades and brush discs) are standardized to simplify inventory.
