Multi functional Diesel Sanitation Vehicle JIECHI S9

Home Products Municipal cleaning equipments

Multi functional Diesel Sanitation Vehicle JIECHI S9

Multi functional Diesel Sanitation Vehicle JIECHI S9

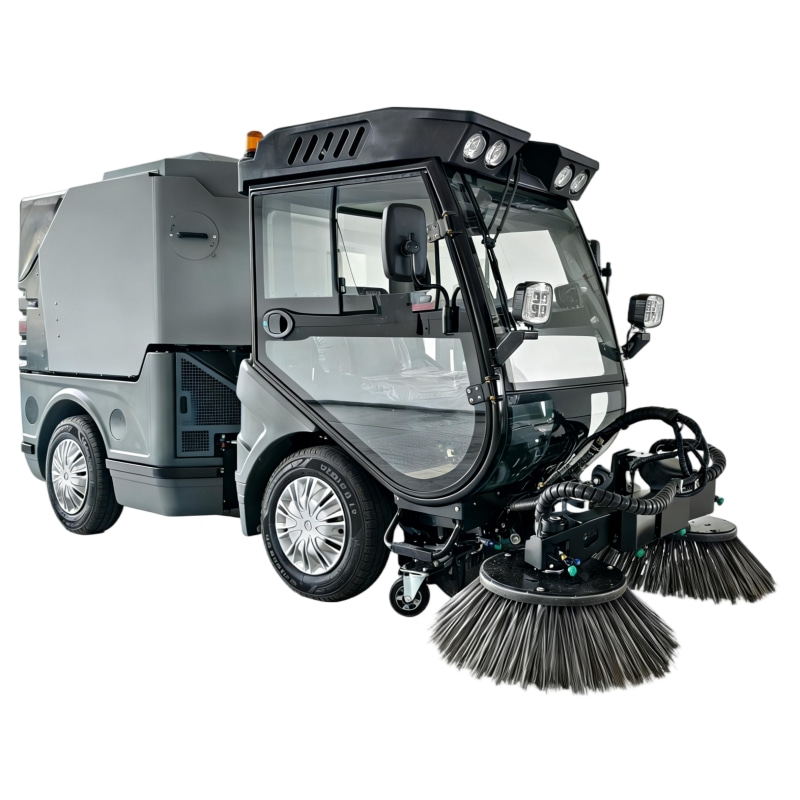

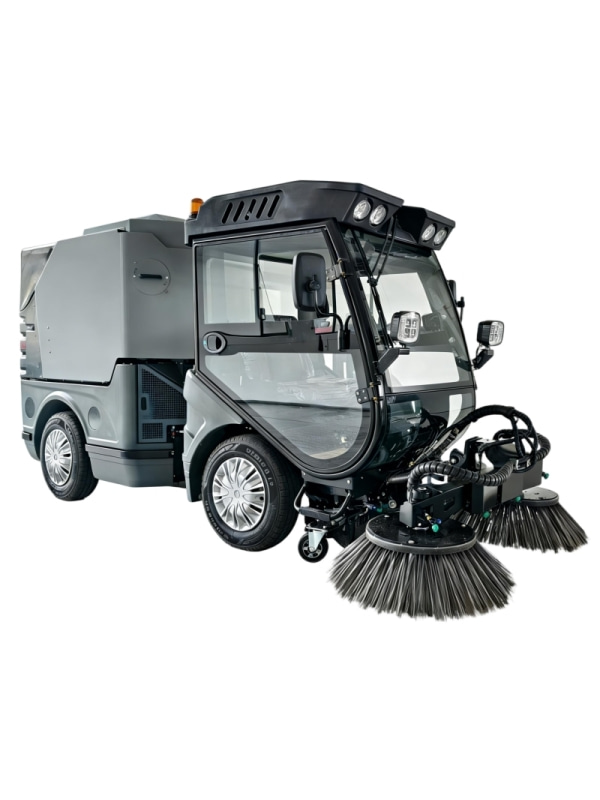

The Jiechi S9 is an all-weather, all-terrain diesel sweeper for efficient outdoor cleaning. It features an adjustable 1.4–2.2m sweeping width and a 1.6m³ one-click self-dumping hopper for long-lasting, high-efficiency operation. The built-in sewage circulation system suppresses dust effectively.Equipped with 4WD hinged body, it navigates complex road conditions smoothly. The fully enclosed comfortable cabin ensures safe and easy operation. Compatible with snow removal attachments, it supports year-round use. Durable and low-maintenance, it suits various public and industrial sites to cut cleaning costs.

  • Model :

    S9
  • Engin Displacement :

    2.216L
  • Engin Rotation Speed :

    2800RPM
  • Engin Cylinde :

    4
  • Operation Temperature :

    -20℃ ~ +50℃
  • Energy Type :

    Diesel
  • Fuel Tank Capacity :

    70L
  • Fuel Consumption :

    3.2L/h
  • Alternator :

    12V/65Ah
  • Battery :

    12V/85Ah
  • Size :

    4285*1400*2040mm
  • Weight :

    2370kg
  • Maximum Speed :

    24 km/h

Engineered for high-intensity municipal and industrial outdoor cleaning, the S9 Multifunctional Road Sweeper delivers uncompromising debris collection and dust suppression. Powered by a robust Perkins 404EA-22 diesel engine (35.7kW) and controlled via an advanced hydrostatic transmission, this heavy-duty platform seamlessly integrates sweeping, high-pressure washing, and pneumatic suction. Built to endure extreme operating temperatures (-20°C to +50°C), the 2370kg JC-8240 provides agile maneuverability and reliable, single-pass cleaning for city roads, large factories, and public plazas.

Core Engineering & Operational Advantages

Extra-large Capacity Hopper

Fitted with a 1.6m³ large enclosed garbage hopper, it effectively reduces frequent waste dumping. Equipped with standard one-touch hydraulic self-dumping, no manual flipping is required. It saves time and labor for garbage disposal and supports all-day long continuous cleaning.

Powerful Sweeping & Suction System

Adopting a high-power negative pressure suction system, it thoroughly collects leaves, gravel, dust, cigarette butts and packaging bags in one pass with no ground residues. The speed-adjustable brush discs adapt to different cleaning needs, suitable for light sweeping of floating dust and thorough removal of stubborn dirt.

Water Recycling & Dust Suppression

Equipped with a 320L water tank and a sewage recycling system, it reuses cleaning water to save water and reduce consumption. Even water mist effectively restrains dust and eliminates secondary pollution, meeting high environmental standards for municipal roads, food parks and industrial plants.

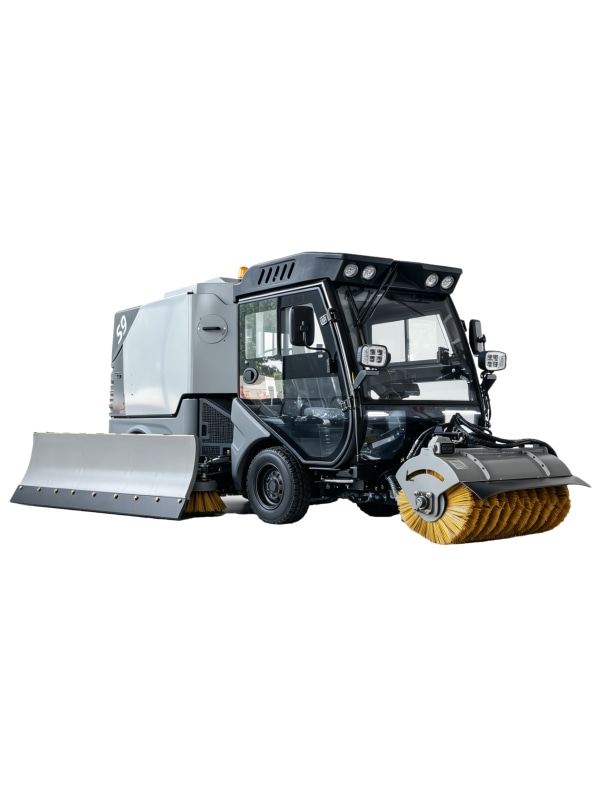

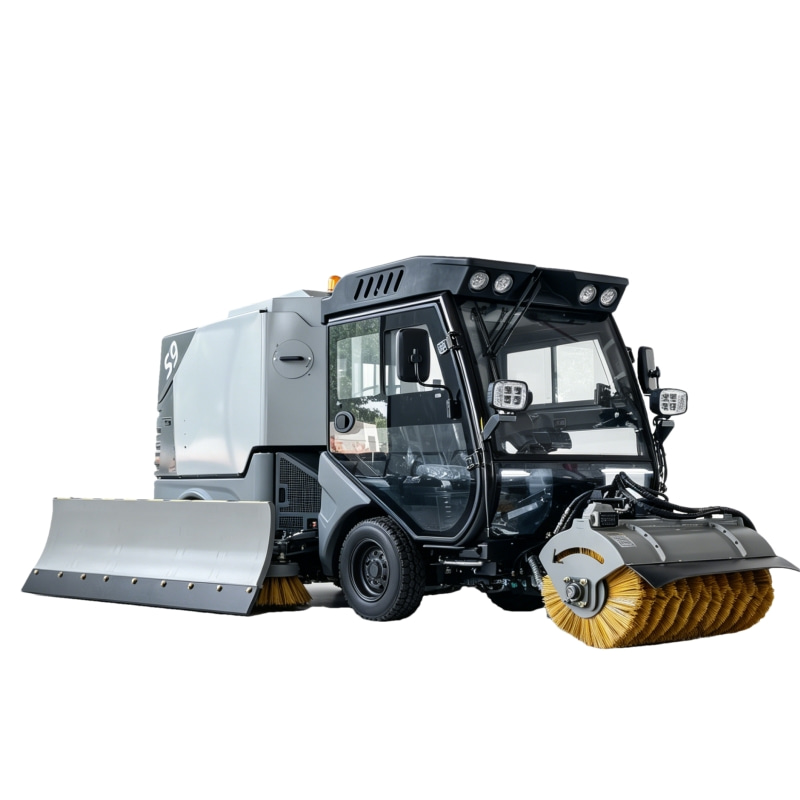

All-scenario Multi-functional Design

It is widely applicable for municipal roads, industrial parks, logistics parks, residential communities, commercial plazas, scenic spots and factory outdoor surfaces. With optional snow-removal accessories, it supports daily cleaning and winter snow removal, realizing year-round outdoor maintenance and adapting to diverse regions, seasons and commercial cleaning scenarios.

Optimized Usage Scenarios

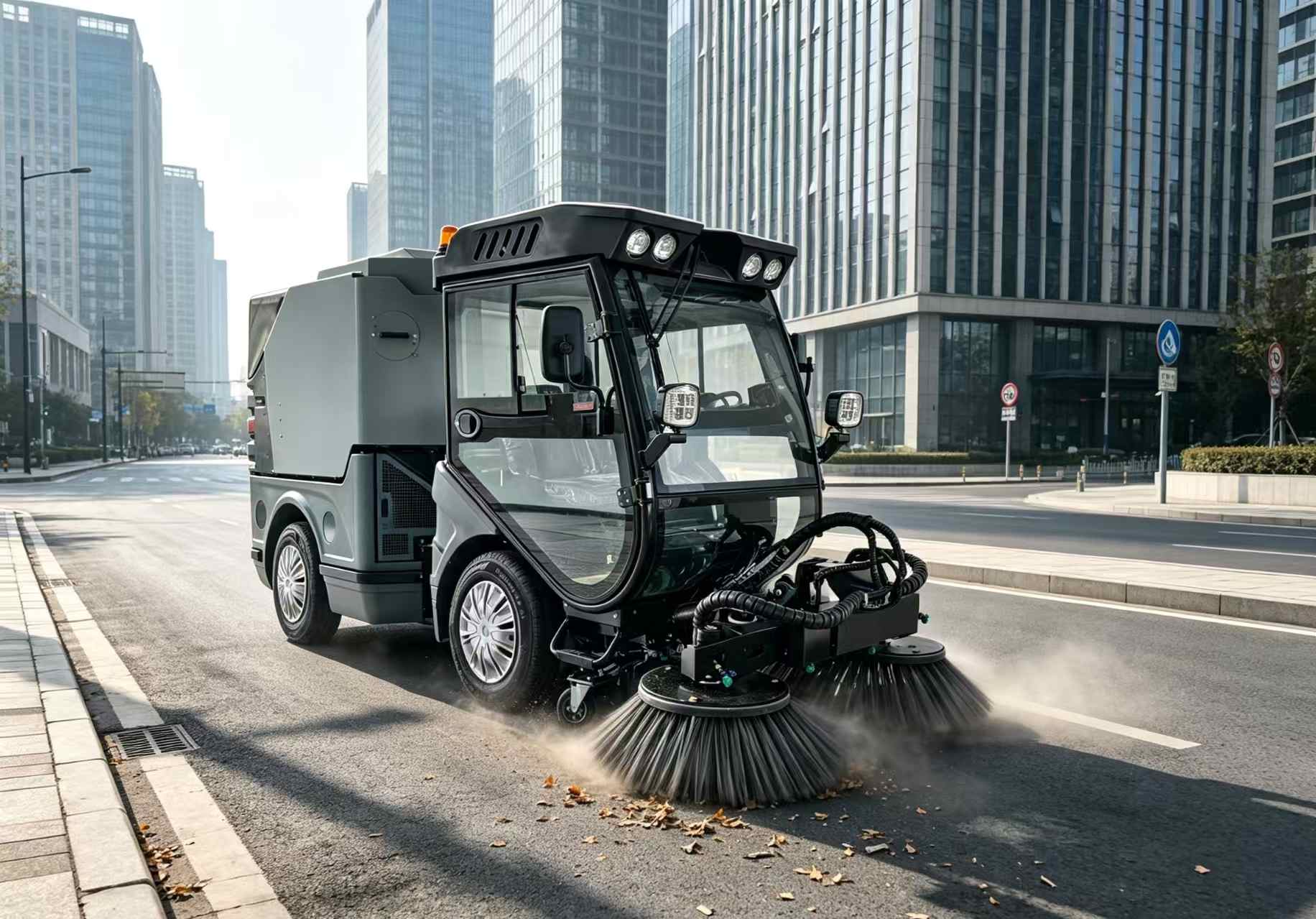

S9 sweeping municipal city roads

Municipal & City Roads

With a max driving speed of 24km/h and wide sweep coverage, it ensures rapid deployment across urban networks.

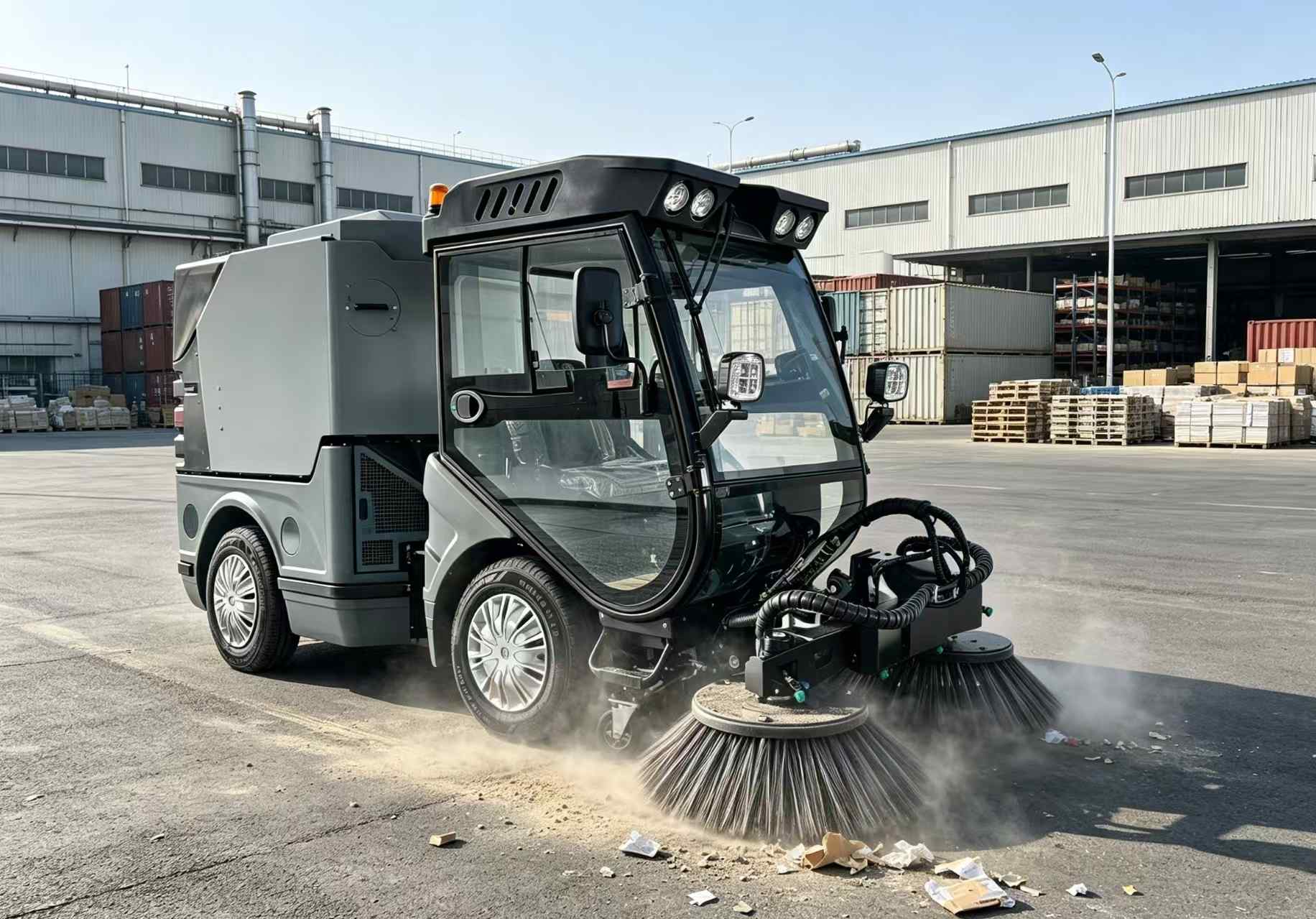

Industrial road sweeper cleaning factory production facility

Industrial Sites & Logistics

The robust 2370kg chassis and powerful suction easily handle heavy debris, metallic dust, and logistical waste.

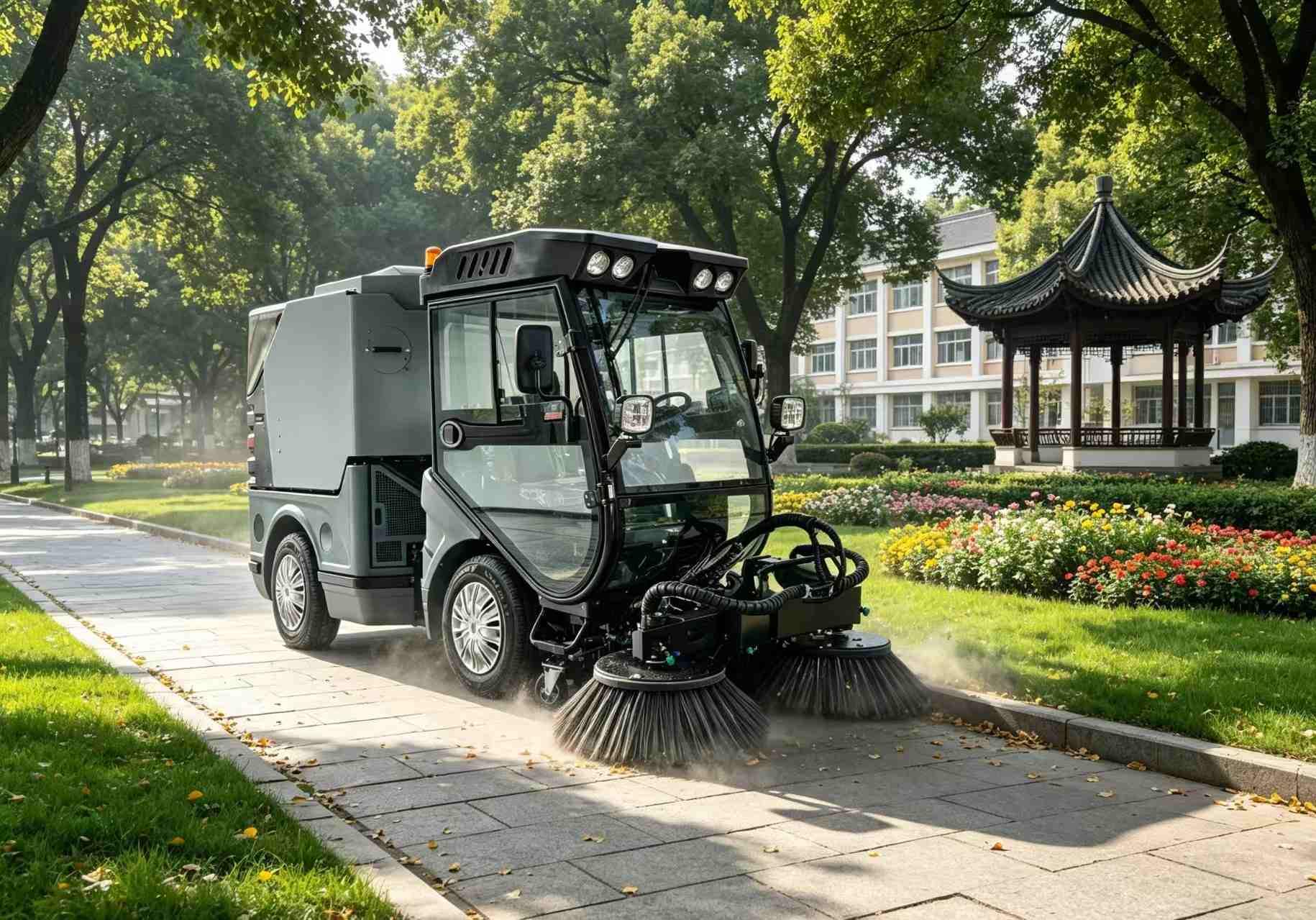

Compact road sweeper in public parks and squares

Parks, Plazas & Campuses

Independently adjustable tilt angles and agile steering allow precise cleaning around curbs and landscape features.

Technical Specifications

Engine Manufacturer Perkins Machine Size (with/without brush) 4285*1400*2090mm / 4070*1240*2090mm
Engine Model 404D-22 Machine Weight 2370kg
Cylinders 4 Ground Clearance 200mm
Displacement 2.216L Temperature Range -20°C ~ +50°C
Maximum Power 35.7kw Energy Type Diesel
Engine Rotation Speed 2800r/min Fuel Tank Capacity 70L
Maximum Torque 143N Fuel Consumption in Operation Mode Approximately 3.2L/h
Engine Oil 8L Electrical System Electric Start (with electric glow plug)
Cooling System Coolant Alternator 12V-65Ah
Hydraulic Oil Type HM-46 Battery 12V-85Ah
Hydraulic Oil Capacity Approximately 65L Water Tank Capacity 320L
Braking Method Hydrostatic braking and mechanical braking Sprinkler Pump 4.8bar
Drive Mode Four wheel drive, hydraulic transmission High Pressure Water Gun Hose Reachable Range 8m
Driving Speed Maximum 24km/h Maximum Water Pressure of High-pressure Water Pump 140bar

Maintenance & Operations FAQ

Can Jiechi S9 work normally in cold freezing weather?

Yes. The machine’s operating temperature range covers -20°C to +50°C. Equipped with a reliable diesel engine matched with professional antifreeze circulation system and glow plug electric ignition, the sweeper realizes stable cold startup and steady running, adapting to year-round outdoor cleaning tasks in northern cold regions.

What routine maintenance is needed for the water recycling dust suppression system?

Empty and flush clean water tank and sewage recovery tank every day after work to prevent sediment clogging. Clean the water filter screen weekly. Check spray nozzles for blockage regularly. Normal upkeep ensures stable atomization, avoids secondary dust pollution and extends pipeline service life.

How to maintain the 1.6m³ self-dumping hopper?

Rinse the hopper interior thoroughly after daily operation to remove adhered garbage and sludge. Check hydraulic tipping cylinders and hinges monthly for rust or jamming. Keep the sealing rubber strips intact to prevent dust leakage. The one-touch hydraulic dumping structure has few vulnerable parts, needing only occasional lubrication of movable joints.
