Solar Lithium Battery Sanitation Vehicle Road Sweeper JIECHI JCTEV8240

Home Products Municipal cleaning equipments

Solar Lithium Battery Sanitation Vehicle Road Sweeper JIECHI JCTEV8240

Solar Lithium Battery Sanitation Vehicle Road Sweeper JIECHI JCTEV8240

The JC-TEV8240 solar lithiumion road sweeper is equipped with dual seats in the driver's cab, making it convenient for two people to work together; Adopting a 10.2inch touch central control screen and a 16 key control panel as the human-computer interaction interface, equipped with a one key operation button, combined with all functional operation button switches, designed according to ergonomics, simple and easy to operate. The front and rear dual recording driving recorders inside the driver's cab provide real time high-definition images, providing safety assurance for driving operations.

  • Model: :

    JC-TEV8240
  • Voltage :

    307V/230Ah
  • Battery Pack Specification :

    70kwh/Lithium Iron Phosphate
  • Driving Speed :

    28km/h
  • Cleaning Width :

    1600-2400mm
  • Spreading Wing Photovotait Panels Maximum Power :

    1200W
  • Low Voltage Control System Battery :

    12V/45Ah
  • Hydraulic Motor :

    3000W
  • Fan Motor :

    5500W
  • Traction Motor :

    8000W
  • Water Tank Capacity :

    386L
  • Size :

    4285*1280*2150mm
  • Weight :

    2700kg

A sustainable outdoor sweeper powered by a lithium battery with solar charging assistance. Designed for long municipal cleaning routes in sunny climates, it delivers powerful sweeping while extending operational range through renewable energy. Its quiet, emission-free design makes it suitable for residential and pedestrian areas.

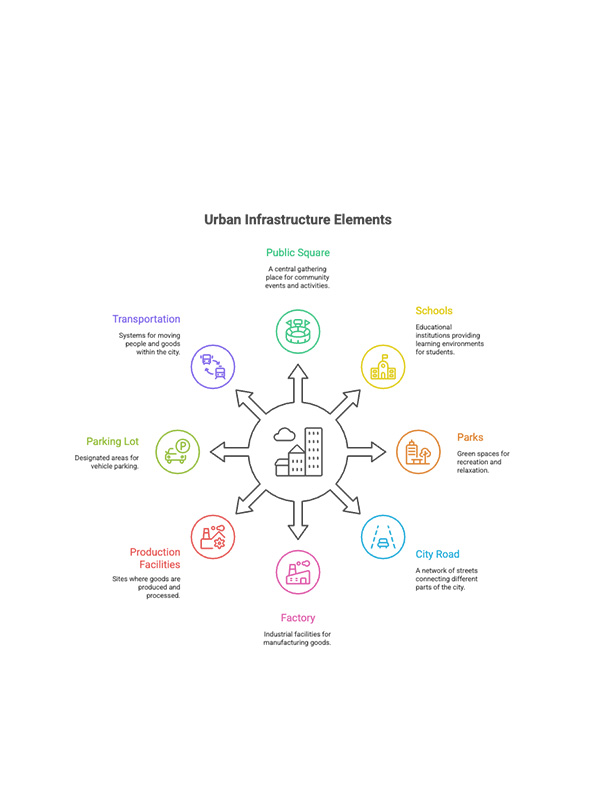

Usage Scenarios

Public Squares School Parks City Roads
Factories Production Facilities Parking Lots Transportation



Key Features & Benefits

  • Solar Power Augmentation

    Extends runtime and reduces charging frequency.

  • Efficient Sweeping System

    Main and side brushes capture debris from curbs to open spaces.

  • Long-Lasting Battery

    Lithium technology supports extended daily routes.

  • Quiet & Clean Operation

    No exhaust emissions and minimal noise output.

  • Operator-Friendly Layout

    Ergonomic seating and controls reduce fatigue.

  • Eco-Conscious Design

    Lowers operational costs and carbon footprint.



Technical Specifications

Spreading Wing Photovotait Panels Power 1.2kw Ground Clearance 200mm
Low Voltage Control System Battery 12V/45Ah Temperature -20℃ ~ +50℃
Traction Motor 8000W Energy type Electric
Fan Motor 5500W Battery Pack Specification 70kwh/Lithium iron phosphate
Hydraulic Motor 3000W Rated Voltage 307V
Water Tank Capacity 386L Rated Current 230Ah
Sprinkler Pump 4.8bar Maximum Driving Speed 28km/h
Working Hours 13h Dustbin Capacity 1850L
Machine Size(with/without brush) 4285*1280*2150mm/4070*1280*2150mm Cleaning Width 1600-2400mm
Machine Weight 2700kg Gradeability 20%











Build Quality & Maintenance

UV-resistant materials and weather-sealed components suit prolonged outdoor use. Solar panels are easy to clean and built for impact resistance. Battery and brush systems have accessible service points for routine care.



Company Capacity

  • Mordern Production Base

    We have large and advanced production facilities that ensure high quality and large-scale production.

  • Advanced Manufacturing
    Skilled technicians meticulously assemble and inspec every cleaning machine, adhering to stringent quality standards.
  • Extensive product line

    We offer a comprehensive range of cleaning equipment to meet the diverse needs of various industries and scenarios.

  • Cleaning Machine OEM
    A team of seasoned R&D experts continuously develops cleaning technologies to keep our products at the industry forefront.
